Sheet metal Parts

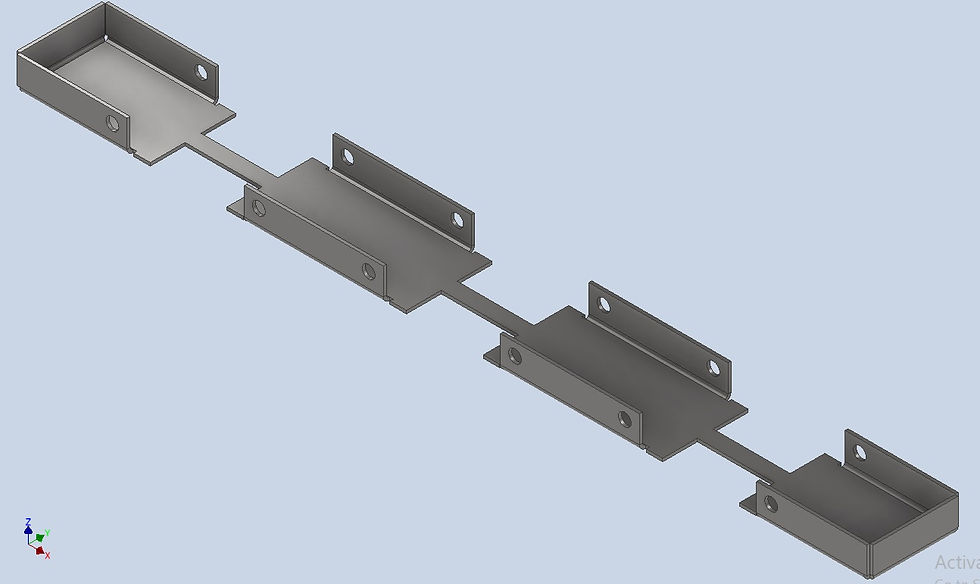

Sample part

Sheet metal parts with no complex shape - if you need similar its just 5-10 minutes

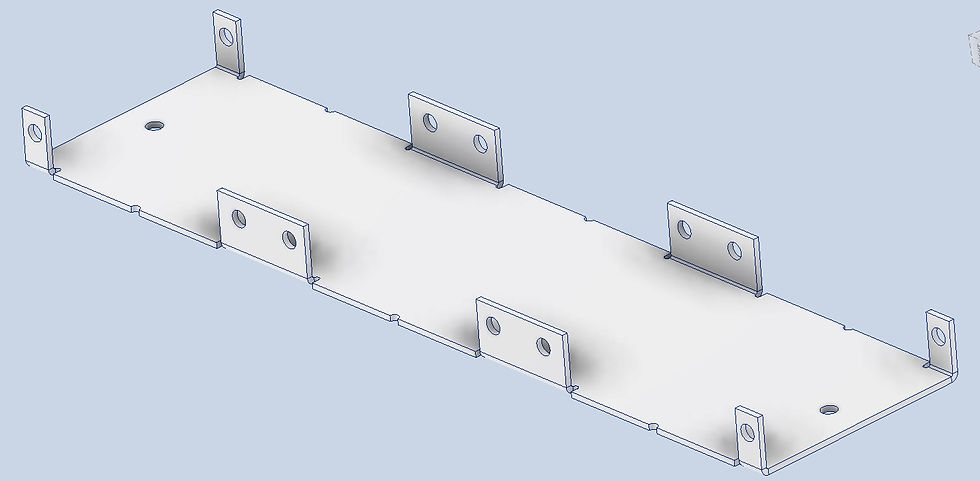

5 minutes job

I make model from client sketch for 5 minutes, he get dxf

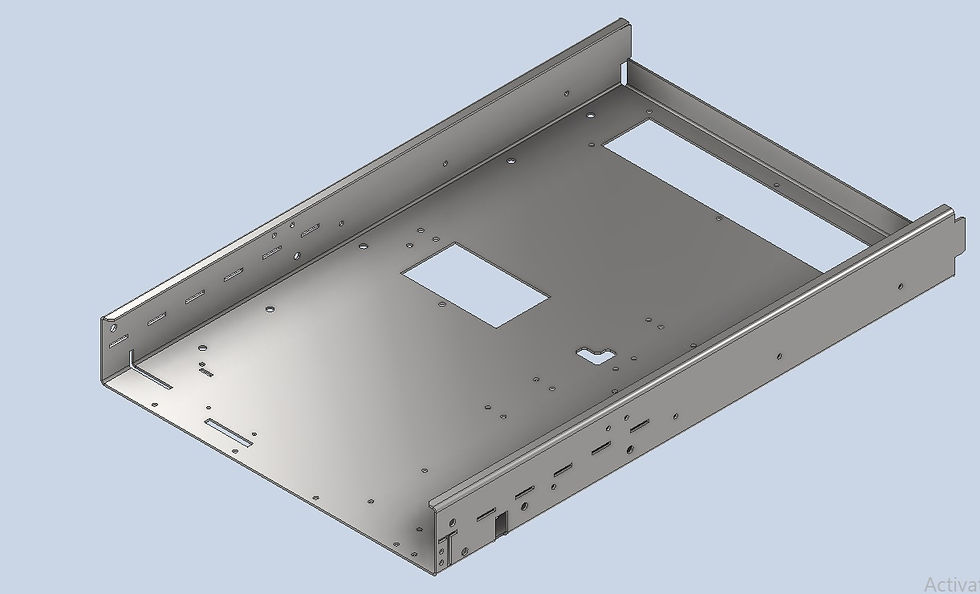

Precise sheet metal part with assembly plan

On this part most important was tolerance in assembly process of almost 20 parts

Loading ramp

Loading ramp for unloading and loading goods in a cold store

Connection on frame house

I make several variation for connection in frame house

Nice desing - I optimase shape to get better

Utilization of materials was goal

Holder plate

Holder for frame of door.

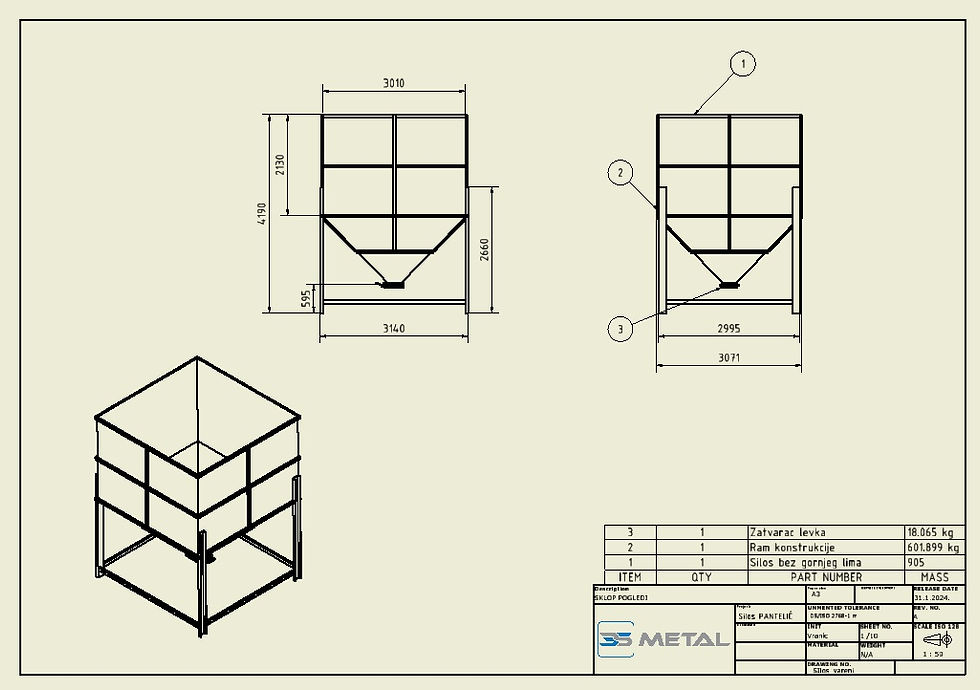

Sketch to Factory

Animal feed factory - intermediate silo in the technological process.

Sheet metals parts and assemblies

In designing process of sheet metal parts, several critical factors must be taken into account to ensure optimal performance, cost-effectiveness, and manufacturability. Whether you're designing a simple bracket or a complex enclosure I always pay attention to right material selection, thickness, process, surface finishing and all other key factors.

Autodesk Inventor
